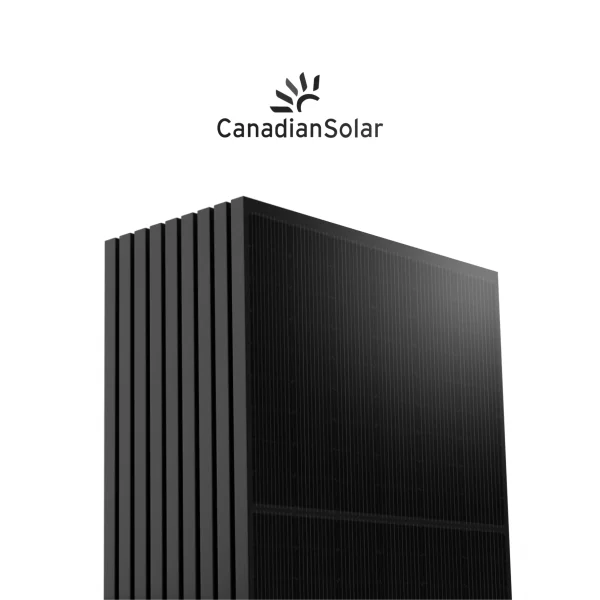

Canadian Solar TOPHiKu6 CS6.1-54TM-450H 450W N-Type TOPCon 108 Half-Cell Monocrystalline Black Solar Panel

$233.99

Canadian Solar, 450W PV Module, 1550mm (~61 in) (+) / 1100mm (39.4in) (-) PV Wire, MC-4 or T6, 35mm Black Frame on Black Back-Sheet, BOB, 108 TOPCon Cells, 25A Max Fuse, 1000VDC, No PTC, 25/30 Warranty, CS6.1-54TM-450H Product Specifications General Information Brand: Canadian Solar Model: TOPHiKu6

In Stock Brand New Free Shipping
Accepted Payment Methods
SKU: 123-2 Category: Tags: , , , , , , , , ,
Warranty: Covered under manufacturer warranty. View Warranty Information →
Ships From: Fairview, MT, USA
GTIN: 61-54-450
Description

The Canadian Solar TOPHiKu6 CS6.1-54TM-450H combines advanced N-Type TOPCon cell technology with a sleek all-black finish, delivering both high efficiency and curb appeal for residential and commercial installations. Its 108 half-cell monocrystalline layout improves light absorption and reduces power loss from shading, while robust mechanical ratings mean it holds up under heavy wind and snow loads for decades of reliable service.

Key Features

  • N-Type TOPCon cell technology enhances light absorption and boosts energy yield versus standard PERC panels
  • 450W nominal power output at 22.0% module efficiency
  • All-black design — black anodized aluminum frame on black backsheet for a clean rooftop look
  • Withstands wind loads up to 2400 Pa and snow loads up to 5400 Pa
  • IP68-rated junction box with bypass diodes for weatherproof reliability
  • 25-year power output warranty (90% for the first 10 years, 80% through year 25) plus a 10-year product warranty
  • Certified to IEC 61215 and IEC 61730 standards for residential, commercial, and ground-mount applications
SpecificationValue
BrandCanadian Solar
ModelTOPHiKu6 CS6.1-54TM-450H
TypeMonocrystalline Solar Panel
Cell TypeN-Type TOPCon
Cell Arrangement108 Half-Cells [2 x (9 x 6)]
ColorBlack on Black
Nominal Max. Power (Pmax)450 W
Opt. Operating Voltage (Vmp)33.0 V
Opt. Operating Current (Imp)13.66 A
Open Circuit Voltage (Voc)38.9 V
Short Circuit Current (Isc)14.55 A
Module Efficiency22.0%
Dimensions (L x W x H)1800 mm x 1134 mm x 35 mm (70.9 in x 44.6 in x 1.38 in)
Weight23 kg (50.7 lbs)
Frame MaterialAnodized aluminum alloy
Frame ColorBlack
Wind / Snow LoadUp to 2400 Pa wind / 5400 Pa snow
Power Warranty25 years (90% first 10 years, 80% through year 25)
Product Warranty10 years
CertificationsIEC 61215, IEC 61730, ISO 9001:2015, ISO 14001:2015
Additional information
BrandCanadian Solar
GTINCS6.1-54TM-450H
