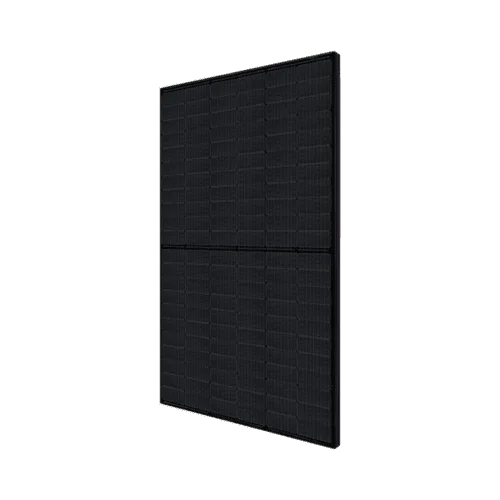

Canadian Solar 390W HiKu Mono-PERC Black on Black Solar Panel (CS3N-390MS)
$334.10
Canadian Solar, 390W PV Module, 1.65m (65 in) (+) / 1m (39.4in) (-) PV Wire, MC-4 or T4, 35mm Black Frame on Black -Sheet, BOB, Mono-PERC, 20A Fuse, 1000VDC, 364.3 PTC, 12/25 Warranty, CS3N-390MS-F23 Key Features Canadian Solar, 390W PV Module, 1.65m (65 in) (+) / 1m (39.4in) (-) PV Wire, MC-4 or T4
SKU:
122-2
Category: Solar Panels
Tags: 390W Solar Panel, Black on Black Solar, Canadian Solar, Commercial Solar, CS3N-390MS, Half-Cell PV Module, High Efficiency Solar, Mono-PERC Module, Photovoltaic Panel, Residential Solar
Warranty: Covered under manufacturer warranty. View Warranty Information →
Ships From: Fairview, MT, USA
GTIN: 3-390
Ships From: Fairview, MT, USA
Description
Canadian Solar, 390W PV Module, 1.65m (65 in) (+) / 1m (39.4in) (-) PV Wire, MC-4 or T4, 35mm Black Frame on Black -Sheet, BOB, Mono-PERC, 20A Fuse, 1000VDC, 364.3 PTC, 12/25 Warranty, CS3N-390MS-F23
Key Features
- Canadian Solar, 390W PV Module, 1.65m (65 in) (+) / 1m (39.4in) (-) PV Wire, MC-4 or T4, 35mm Black Frame on Black -Sheet, BOB, Mono-PERC, 20A Fuse, 1000VDC, 364.3 PTC, 12/25 Warranty, CS3N-390MS-F23
| Specification | Value |
|---|---|
| Brand | Canadian Solar |
| Product Type | Products |
| GTIN | Not available |
| Power Output | 390 W |
| Module Efficiency | 19.2% |
| Cell Type | Monocrystalline PERC |
| Cell Configuration | 132 half-cut cells |
| Dimensions (Length) | 76.4 inches (1940 mm) |
| Dimensions (Width) | 41.3 inches (1048 mm) |
| Dimensions (Height/Thickness) | 1.38 inches (35 mm) |
| Weight | 49.6 lbs |
| Frame Material | 35mm black anodized aluminum alloy |
| Front Glass | 3.2mm anti-reflective tempered glass |
| Backsheet | Black polymer |
| Junction Box | IP68 rated, 3 bypass diodes |
| Connectors | MC4 or T4 compatible |
| Snow Load | Up to 5400 Pa |
| Wind Load | Up to 2400 Pa |
Additional information
| Brand | Canadian Solar |
|---|---|
| GTIN | CS3N-390MS |
